Separated HEPA Filter Corrugating Machine/For Paper or Aluminum

1
MOQ
25000
preço
Separated HEPA Filter Corrugating Machine/For Paper or Aluminum
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Fonte de energia: Elétrico
Relatório de teste de máquinas: Oferecido
Tempo de garantia: 1 ano
Dimensão: 3800*950*1395 mm (C*L*A)
Informatizado: Sim
Origem do produto: Bengbu Anhui China
Destacar:

separated HEPA filter corrugating machine

,

paper aluminum corrugating machine

,

HEPA filter production line equipment
Informação básica
Lugar de origem: Anhui Bengbu
Marca: Bengbu Tongchen
Certificação: CE/ISO
Número do modelo: TCFH-700
Condições de Pagamento e Envio
Detalhes da embalagem: caixa de madeira
Tempo de entrega: 15-45 dias
Termos de pagamento: T/T
Habilidade da fonte: Fornecimento ilimitado
Descrição de produto
Separated HEPA Filter Corrugating Machine
The 350mm Corrugating Machine is a state-of-the-art solution for producing aluminum foil and paper separators. Featuring a painted frame for precision and aesthetic appeal, the ergonomic layout allows easy roll replacement, adjustment, and operation. The process—from roll feeding and tension control to flanging, corrugation, sizing, cutting, and automatic discharge—is fully optimized for efficiency, quality, and minimal operator fatigue.
Product Specifications
Material Aluminum foil (semi-hard, flat) or paper
Maximum Roll Diameter 700 mm
Maximum Material Width 320 mm
Material Thickness 0.04 ± 0.005 mm
Corrugated Edge Width After Pressing 3 mm - 10 mm
Corrugation Height 3 mm - 6 mm (customizable)
Sizing Length Freely adjustable
Production Speed (Max) 0 - 30 sheets/min
Power Supply 380V, 50Hz
Compressed Air Requirement 0.6 m³/min
Machine Dimensions (L * W * H) 3800 * 950 * 1395 mm
Motor Configuration Three-phase motor
Mechanical Parts Treatment Shafts: electroplated hard chrome; Others: decorative nitro-iron and black treatment
Pneumatic Components Brand Jiahe brand, Harbin bearings
Instrument Installation Reasonable layout, easy to remove
Main Features
  • Unwinding Section: Magnetic powder brake with dedicated motor ensures constant tension control, keeping aluminum foil straight for smooth flanging, corrugation, and cutting. Includes air-expandable shaft.
  • Inlet Tension Section: Adjustable tension rollers avoid uneven tension, ensuring stable production.
  • Flanging Section: Roller-type flanging continuously flattens and smooths aluminum foil edges to meet width requirements.

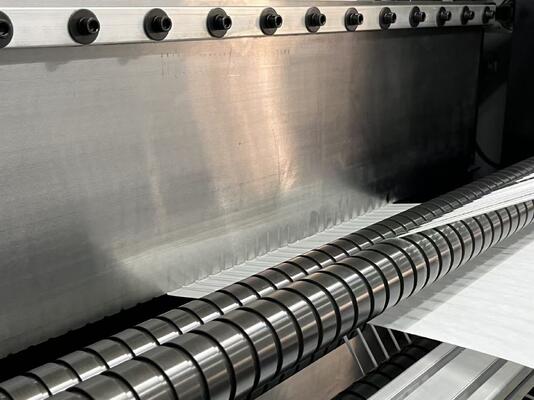

  • Corrugation Pressing Section: Replaceable corrugation rollers can be customized for height requirements; full roller group replacement requires no adjustment.
  • Sizing & Cutting Section: Pneumatic knives with induction sizing provide high precision cutting of corrugated sheets.
  • Automatic Discharge Platform: Pneumatic system automatically ejects finished corrugated sheets, simplifying collection and stacking.

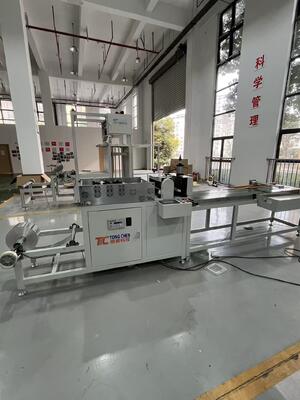

Separated HEPA Filter Corrugating Machine/For Paper or Aluminum 0
Product Advantages
  • High production efficiency (up to 30 sheets/min)
  • Fully customizable corrugation height (3-6mm) and sheet length
  • Stable production due to tension-controlled feeding
  • Ergonomic design improves operator comfort and safety
  • Easy maintenance with accessible and replaceable components
  • Suitable for both aluminum foil and paper materials
  • Painted frame ensures durability and precision alignment
Applications
  • Automotive air conditioning filters
  • Cabin air filters
  • Industrial and HVAC filters
  • Household air purifier filters
  • Nonwoven and pleated filter frames
  • Any filter requiring precise four-side edge strip removal
Ideal for filtration processing factories, air filter assembly lines, and precision finishing workshops.
Company Profile
Separated HEPA Filter Corrugating Machine/For Paper or Aluminum 1
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, and fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Production Packaging
Separated HEPA Filter Corrugating Machine/For Paper or Aluminum 2 Separated HEPA Filter Corrugating Machine/For Paper or Aluminum 3
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
